Q6S Mini Bee Eye
Q6S Mini Bee Eye is a powerful Mini Bee eye light, compact and unique honeycomb design, use 40w LED, mid-air parallel Beam, uniform Wash and spectacular built-in Graphic effect. Beam zoom from: 6-50°. It features wonderful pixel and ring effect for projection use Shape mode, Individual LED can be controller for benefit for dynamic effect, Front Lens can be rotated bi-directional and continuous effect. Very high-end and powerful light
LED Moving head light
- Product description
- Specification
- Product details
- Product acessories
-
- Commodity name: Q6S Mini Bee Eye
- Commodity ID: 1324442359080570880
Q6S Mini Bee Eye is a powerful Mini Bee eye light, compact and unique honeycomb design, use 40w LED, mid-air parallel Beam, uniform Wash and spectacular built-in Graphic effect. Beam zoom from: 6-50°. It features wonderful pixel and ring effect for projection use Shape mode, Individual LED can be controller for benefit for dynamic effect, Front Lens can be rotated bi-directional and continuous effect. Very high-end and powerful light
Technical parameter
Input voltage: AC90 - 240V, 50/60hz
Power: 350W@220V
Optical system
Lighting resource: OSRAM 40W LED RGBW 4in1
Quantity LED: 7pcs x LEDs, each LED can be controlled
Lifetime: more than 50000 hours
zoom range: 4-60 °, 16800lux@5m @Minimum angle
Color temperature: 2500-9000k can be adjusted linearly
Color range: Color RGBW (red green blue white) linear color mixing adjustment
Function effect
It has the functions of wash, beam, graphic effect, matrix, etc
There are 31 kinds of front layer graphics and 3 kinds of back layer (background) graphics. Each graphic can be changed in color, strobe and brightness.
The front layer can be used for fast / slow gradient, fade and density animation effects, and the back layer can be used for static effects
The front Lens can be rotated fast / slowly in two directions, with classic effects such as vortex, kaleidoscope, waist, etc
4 0-100% linear dimming modes,
2 color switching modes (RGBW / CMY)
Slowest strobe speed: 1 time / s, fastest speed: 25 times / s, with instantaneous dark field function
Pan movement: 540 ° electronic error correction, accurate positioning
Tilt movement: 230 ° electronic error correction, accurate positioning
LCD display
Control model
5 control modes:
3pin DMX512 signal input / output
DMX signal
manual control mode
automatic test mode
sound active mode
5 channel control modes(Clay Paky)
Standard mode 21ch
built in shape mode 35ch
expansion mode RGBW 42ch
expansion mode 49ch
full mode 63ch

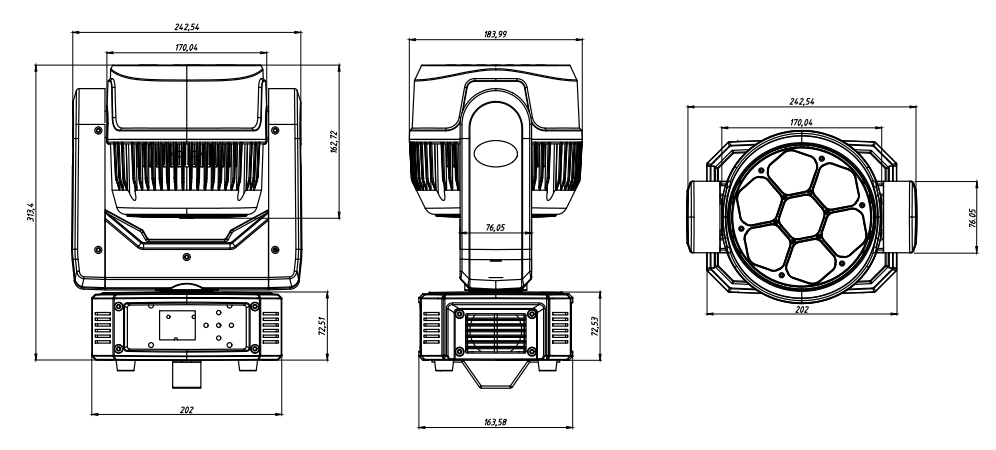

Appearance
Seamless lens design, aspheric lens structure
Black shell: new ABS fireproof engineering plastic material
Weight: 5.5kg
-
