LY300 BSW CMY LED Moving Head light
LY300 CMY is a CMY Moving Head Light that integrates beam, Spot and wash effect; Using a 300W LED high brightness light source, zoom from 5° to 45°, equipped with a CMY colorful infinite mixing system, and combined with dynamic dual prisms that can be stacked and flexibly used. Good using in music concert and entertaiment evets.
LED Moving head light
- Product description
- Specification
- Product details
- Product acessories
-
- Commodity name: LY300 BSW CMY LED Moving Head light
LY300 CMY is a CMY Moving Head Light that integrates beam, Spot and wash effect; Using a 300W LED high brightness light source, zoom from 5° to 45°, equipped with a CMY colorful infinite mixing system, and combined with dynamic dual prisms that can be stacked and flexibly used. Good using in music concert and entertaiment evets.
Specification
Input voltage: AC200-240V 50/60Hz
Input power: 400W
Light source: 300W high brightness LED
LED lifespan: 50000 hours
Color temperature: 7500K
Optical lens: High definition optical lens coated with anti reflective film, with an output lens diameter of 130mm

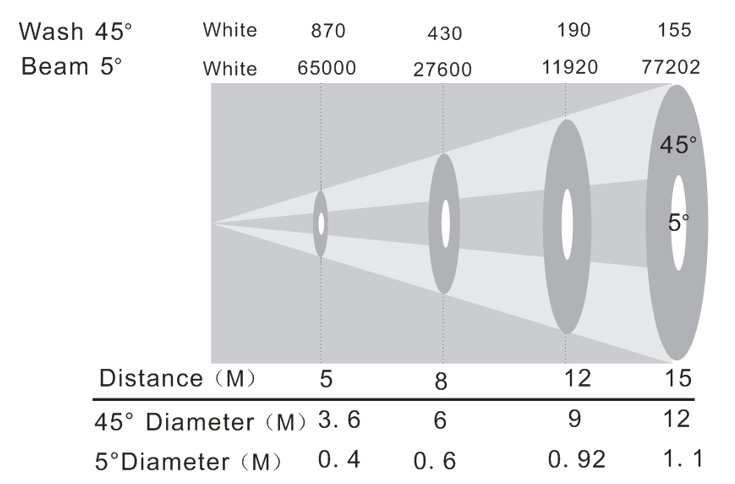

Zoom: 5 ° -45 °
Color

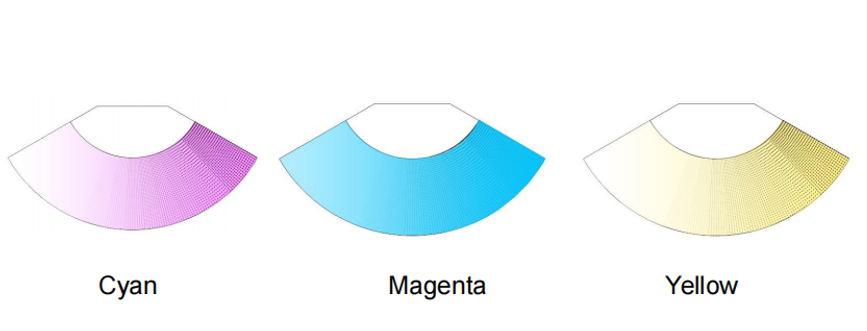

Equipped with CMY color infinite mixing system
1 color wheel: 7 colors+CTO color temperature correction (adjustable from 2800K-6500K), can achieve bidirectional color flow rainbow effect
Gobo system
1 fixed gobo wheel with 11 gobo and white, with flowing and shaking effects

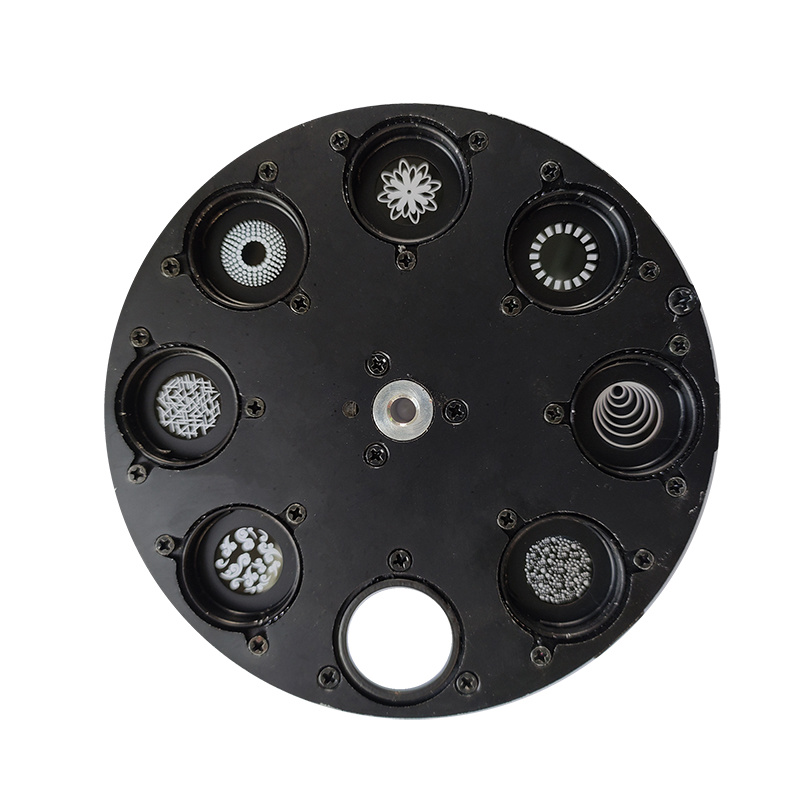

1 rotating gobo wheel with 7 gobo (interchange) and white, rotating and gobo wheel positioning
Effect configuration
Frost: Independent frost, spot angle 5 ° -45 °
Dimming: 0-100% mechanical linear adjustment
Strobe: 0.5 to 14 t/s.
2 Prism: 4-facet circle prism+4-facet line prism, can rotating.
Pan: 540 °, 16 bit fine
Tilt：260 °, 16 bit fine
Control channel: 22/27 channels
Operation mode: voice control, auto run, master-slave, DMX512
Control protocol: Standard DMX512, RDM function
Menu display: 2.4-inch color LCD touch screen;

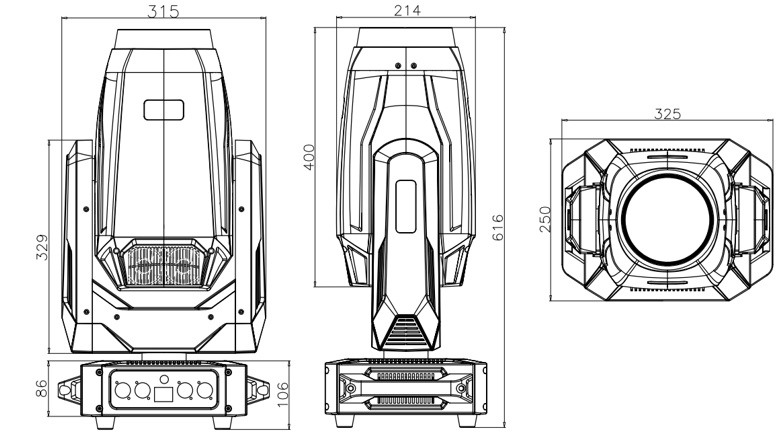

Product size: 325 * 250 * 630 (mm)
Net weight: 16.5Kg
Working environment temperature:- 20℃~40℃
Protection level: IP20
